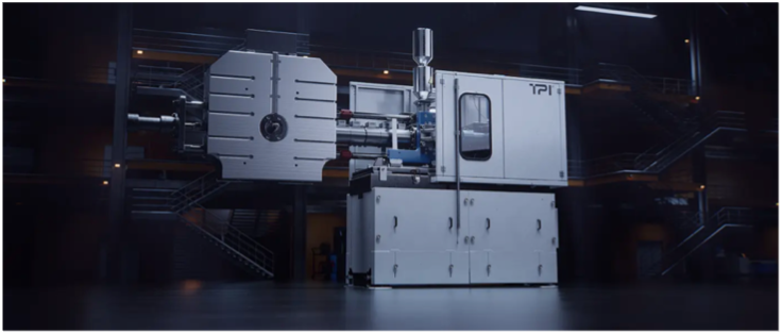

TPI Superplast thixomolding machine
Home / Additional Capabilities / Thixomolding

Thixomolding

Our Dynathixo die casting process combines standard thixomolding with our cold chamber technology to manufacture high-quality magnesium components.

Speak To An Engineer
Benefits
Key Features
Compatible Materials

Why Choose

Thixomolding?Dynathixo die casting is the optimal choice for magnesium projects that demand:
  • Improved design flexibility
  • Accommodates large production volumes
  • Optimized dimensional accuracy
  • Investment-friendly
  • Robust filling area
  • Improved flow
  • Faster filling times
  • Significantly reduced porosity
  • Less risk on shrinking cracks
  • Thin walls
  • Minimized tool wear
  • Fewer size limitations
  • Better material properties
  • Fire resistance magnesium alloys available
  • Most environmentally-friendly process

A Look At

Dynathixo Key FeaturesOur innovative Dynathixo machines offer the following key features:
  • Combines a standard thixomolding machine with a cold chamber shot sleeve
  • Can easily convert to cast aluminum on cold chamber machines
  • Proprietary extruder feature
  • Standard cold chamber plunger/shot sleeve
  • Semi-solid liquid material is shot with standard sleeve
  • High piston speeds with the piston as the only moving part
  • Piston and filling chamber can be replaced quickly
  • High static holding pressure up to 1000 bar
  • Lower temperature of the melt compared to hot and cold chamber die casting
  • No protective gas required
  • Generates less CO2

Choose Your

Thixomolding MaterialsOur wide range of materials that are compatible with Dynathixo die casting machines includes:
  • Magnesium alloy
  • High fire resistance magnesium alloy

What is Thixomolding?

Dynathixo is an advanced semi-solid metal casting technology developed by Dynacast together with TPI, blending traditional thixomolding with our cold chamber process. Thixomolding magnesium, also known as magnesium injection molding, has long been utilized in industries such as consumer electronics and e-bikes, and this innovative variation expands Dynacast's ability to provide high-performance magnesium solutions across a broader range of sectors. Dynathixo ensures superior quality and durability in magnesium components, offering a more efficient and innovative solution for industry leaders seeking optimized parts.

See All Technologies

Thixomolding Vs. Dynathixo

Thixomolding uses solid chips that are compressed, heated, and mixed into a semisolid material before being injected into the die with the extruder.

Dynathixo combines Dynacast’s cold chamber process with a thixomolding extruder to mix solid chips into the pressure chamber, utilizing a cold chamber plunger and hydraulic system for a robust operation.

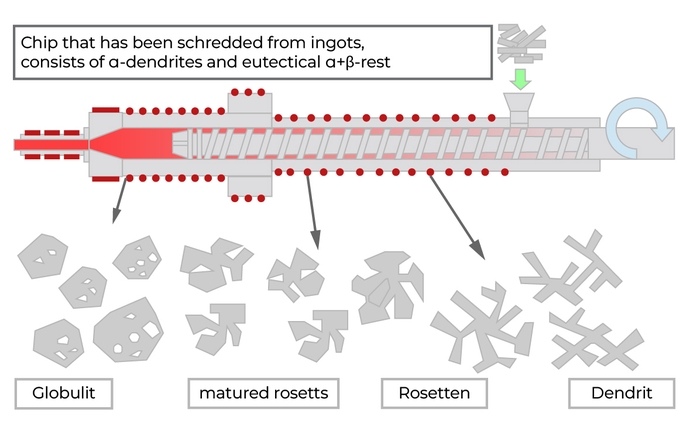

Graphic showing how semi-solid metal chips are formed during the thixomolding process

Inside the Dynathixo Process

The Dynathixo process involves feeding magnesium alloy chips into a heating chamber where they are mechanically processed and sheared by a rotating screw inside a barrel, transforming them from dendritic to globular state. The semisolid material is then injected into a preheated mold under high pressure, allowing for thinner walls, lower porosity.

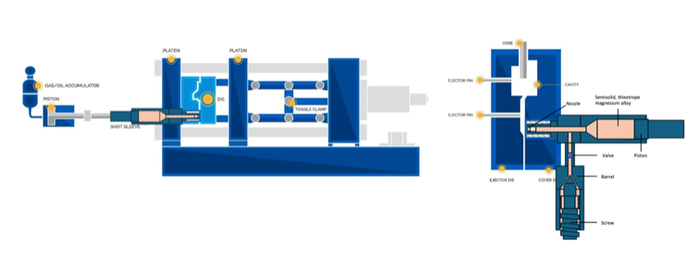

Dynacast Thixomolding Graphic

Engineered by Dynacast for Optimal Quality and Efficiency

The Dynathixo machine delivers superior material properties, lower energy consumption, reduced CO2 emissions, longer tool life, and less waste compared to die casting magnesium with a standard cold chamber machine.

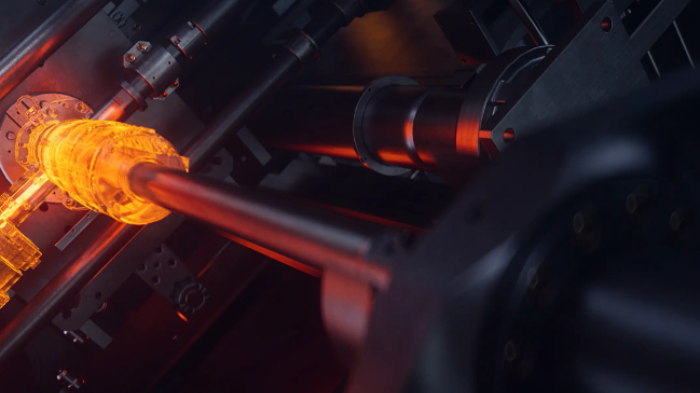

Thixomolding machine

Achieve Superior Quality with Dynathixo

Dynathixo helps prevent air entrapment, resulting in thinner walls, improved flow, and reduced wear on the sleeve and plunger.

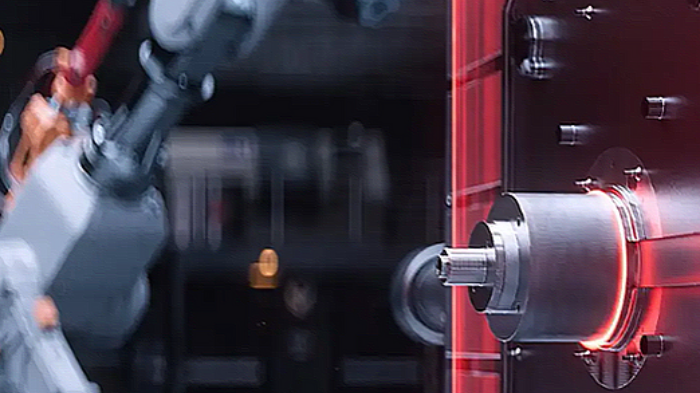

Thixomolding machine nozzle

A Sustainable Solution

The Dynathixo process optimizes energy efficiency by heating the material at a lower temperature and eliminates the need for inert gases, reducing both energy consumption and CO2 emissions. Additionally, since the Dynathixo machine only requires a nozzle tip, it achieves excellent shot weight ratio without the need for a tablet rest.

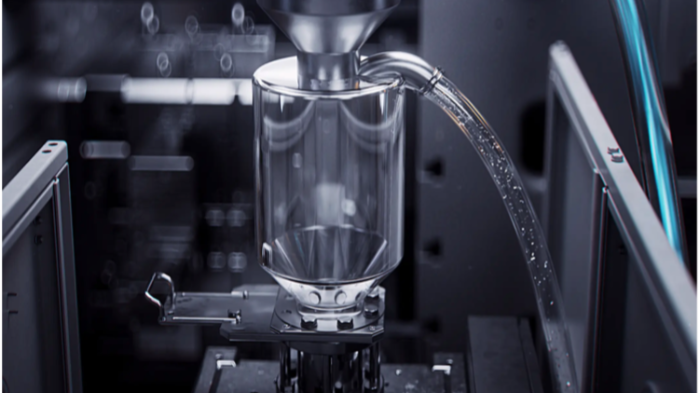

Metal chips moving through thixomolding machine

Convert to Dynathixo and Revolutionize Your Manufacturing Process

Converting from plastic injection molding to Dynathixo die casting enhances strength, damping, shielding, and stiffness, with thixomolded magnesium offering superior durability and performance over plastic part. Prioritizing metal over plastic helps drive a more eco-friendly and sustainable solution.

Background image

A Look At
Thixomolding Applications

Thixomolding utilizes a distinctive process to manufacture a diverse range of magnesium components. Here are some of the common applications Dynacast can produce:

  • Camera frames
  • Transmission parts
  • Electronics housings
  • Automotive display holders
  • Heat sinks
  • Battery cases
  • Gearboxes
  • Brake-by-wire systems
  • Power steering components
  • Medical devices
  • Aerospace components
