Multi-Slide Die Casting

Our proprietary multi-slide die casting process uses multiple slides within the die to produce intricate, small components with complex geometries.

Speak to an Engineer

Benefits

Key Features

Compatible Materials

Why Choose

Multi-Slide Die Casting?Multi-slide hot chamber die casting is the smart choice for projects that demand:

Complex designs
Consistent part quality
Flash-free castings
High-speed production
Decreased porosity
Improved surface finish
Elimination/reduction of secondary operations
Lower tooling costs over time
Part-to-part repeatability
High production volume
Part consolidation

What Is Multi-Slide Die Casting?

Multi-slide die casting is a hot chamber casting process that utilizes a die casting tool with up to six perpendicular slides to produce complex and precise metal parts, offering design flexibility that surpasses conventional die casting methods. This technology ensures repeatable part integrity and strength, prevents damage to the tool, and often results in net-shape parts without the need for secondary operations.

See All Technologies

Inside the Multi-Slide Process

Our advanced die casting technology delivers net-shaped components at 6x the speed of traditional methods, empowering design freedom through high-precision production.

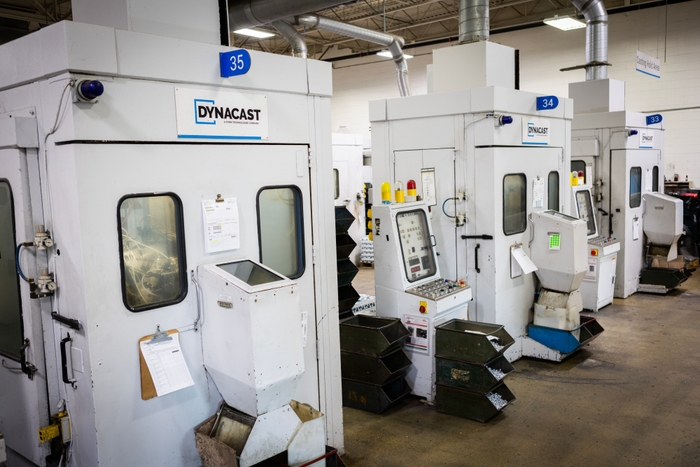

Two Dynacast machines with the operating panel

Multi-Slide vs. Conventional Die Casting

The difference between multi-slide and conventional casting is the construction of the tooling. Conventional offers a simpler, two-part mold, making it more suitable for high-volume production of less intricate parts. Multi-slide utilizes a more complex tooling system with up to six slides, ideal for creating highly detailed and precise components.

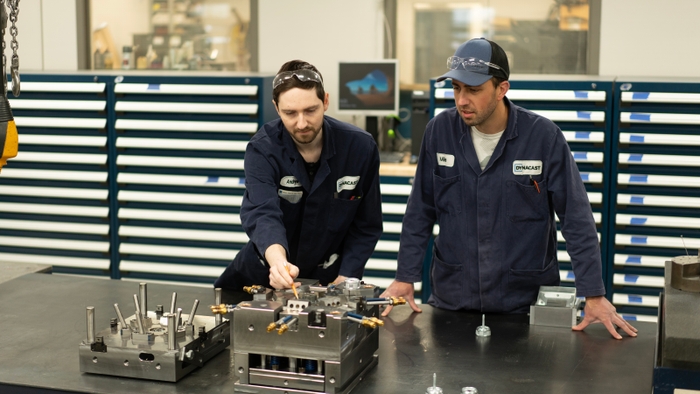

A picture of a multi-slide die cast tool.

Multi-Slide Die Casting Tooling

The multi-slide tool is made up of the die block, sliders, crosshead, and cover plate. Each die block has either a cavity and/or cores on its face, which together form the complete cavity and runner profile into which the molten metal is injected.

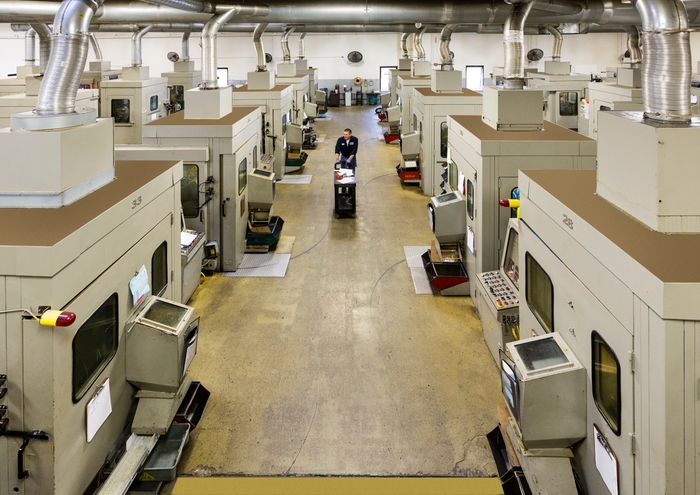

Rows of die casting machines in a facility

Enhancing Die Longevity

Our tool designers predict and incorporate replaceable parts in areas prone to wear in order to extend the lifespan of our die casting tools, enabling cost-effective replacements without needing to replace the entire tool.

Multi-Slide Die Casting in Action

Multi-slide die casting allows for more flexibility with multiple directions of pull, allowing for more complex parts to be manufactured with less secondary operations.
